Conveyor Pulleys

Martin heavy duty conveyor pulley drawing

Dimensions

  • 1 - Pulley Diameter Without Lagging
  • 2 - Face Width
  • 3 - Type or Size of Bushing / Bore Size
  • 4 - Bearing Bore Size
  • 5 - Center line of Bearing to Center line of Bearing
  • 6 - Drive side shaft projection beyond bearing
  • 7 - Drive side shaft diameter
  • 8 - Drive Keyway Size

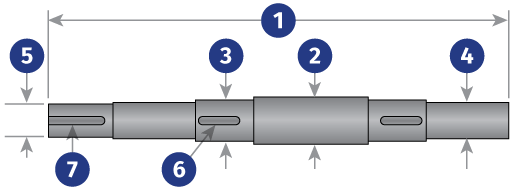

Martin shaft drawing
  • 1 - Overall Length
  • 2 - Major Diameter
  • 3 - Diameter at Bushings
  • 4 - Diameter at Bearings
  • 5 - Diameter beyond Bearing
  • 6 - Bushing, Keyway Size
  • 7 - Drive Keyway Size

Quote Information

Enter as much data in the fields below to allow us to quote the heavy duty conveyor pulley assembly you need.

Do you need a pulley?
Do you need a shaft?
Do you need Bearings and / or Take-Ups?

Please reference my job number when responding to my request to quote.
