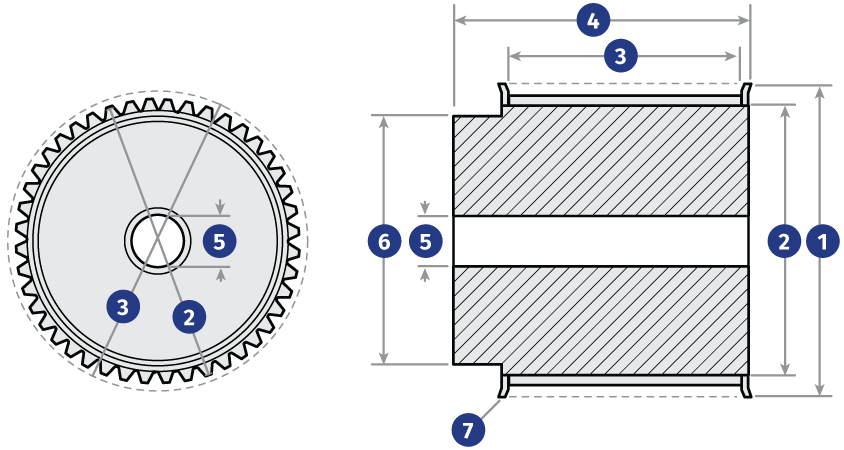

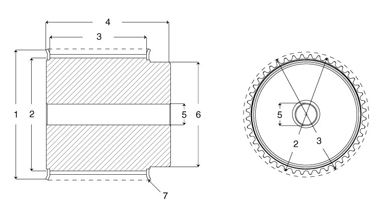

Dimensions

1 - Pitch Diameter (PD)
2 - Outside Diameter (OD)
3 - Face Width
4 - Length Through Bore (LTB)
5 - Bore
6 - Hub Outside Diameter (HOD)
7 - Flange




Synchronous Sprocket Information
Enter as much data in the fields below to allow us to quote the synchronous sprocket you need.
Quantity Type Of Sprocket / Pulley
Belt Type Belt Manufacturer Belt Number
Belt Pitch Belt Width / Face Width
# Of Teeth Maximum Outside Diameter
Maximum Length Thru Bore Maximum Hub Diameter
Hub Configuration Bore Type
Bore Size Keyway Size
Set Screw Size # Of Set Screws
Material Flanged
Notes

Please reference my job number when responding to my request to quote.




Customer Information
* Required Fields
Company Name * Your Name
* Phone Number * E-mail
Address
City State/Province
* Postal Code * Country
When is the quote needed
